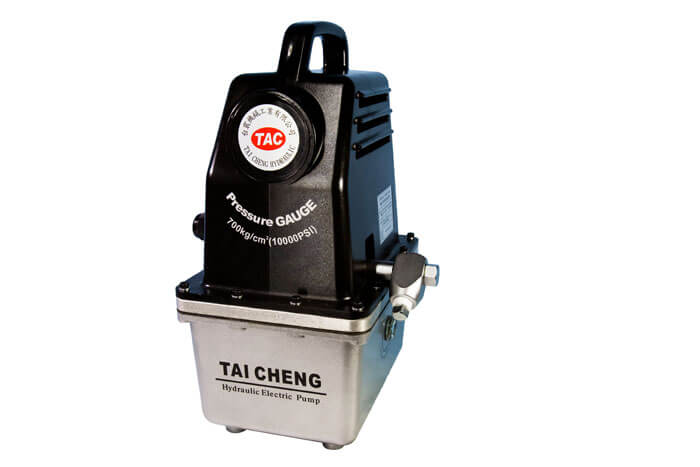

Single-Action Power Pump (CTE-25AS ) - Tai Cheng, Supplying High Pressure Power Pumps

Model number： CTE-25AS

Max. Output Pressure:700Kg/cm²(10000psi)

Output Pressure(kg/cm)²:Low 0-20; Hight 20-700

Output Oil(L/min):Low 2.6; Hight 0.32

Motor(kw):1

Oil storage(cc):2700

Weight(kg):14.8

Size:LxWxH(mm):235x255x410

Quantity

1. High-pressure hydraulic power pump, accompanied with a variety of single-hole hydraulic tools, driven by a motor at high speed two-section high and low pressure quickly out of oil, the maximum output pressure 700kgf/cm² (10000psi).

2. Electric hydraulic pump oil provide quickly, saving time and effort high efficiency.

3. With bottom switch JOG control.

4. With 2M high pressure hose, 360 degree rotation direction.

5. Applied voltage 110V (220V motor is also provided).

6. Oil storage capacity, suitable for oil: R32 special circle oil.

Single-Action Power Pump
