Directly Hydraulic Compression Tool

CPO-400A/CPO-400B Hydraulic Compression Tool CPO-400A Rotating Head of Hydraulic Compression Tool CPO-400A Special Hydraulic Compression Tool 360 Degree Rotating Head

Model number： CPO-400A,CPO-400B

Quantity
    Share

    ◆High pressure direct type hydraulic compressed tools/ hyraulic crimping pliers, manually operation entering oil by high and low two-stage output, the maximum output pressure is 700kgf/cm2(10000psi).

    ◆Easy to operate and carry, suitable for high-altitude operations.

    ◆Accessory dies can be replaced, point compression type, compression maximum size up to 185mm2.

    ◆ㄇ-shaped and 180o rotatable head part, can make use of variety of angles.

    ◆With the overload-protective device.

    ◆Able to customize dies in any sizes.

    Item Output
    (Ton)    		Body
    weight
    (kg)     		Net
    weight
    (kg)    		JIS AWG  DIN Compressed die
    size     (mm    ²)    		Remark

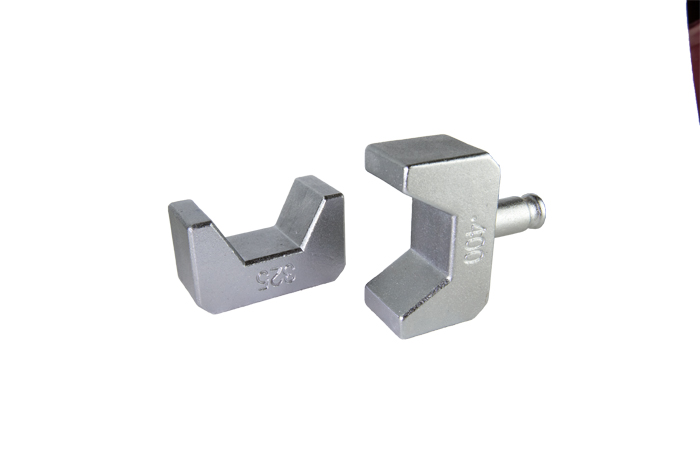

    CPO-400A 1778.7 325 750400

    Male:16-70,
    95-150,185-400
    Female:16-25,35,
    50-70,95,120,150,
    185-240,300,400

    Point
     proimages/A002/11.jpg

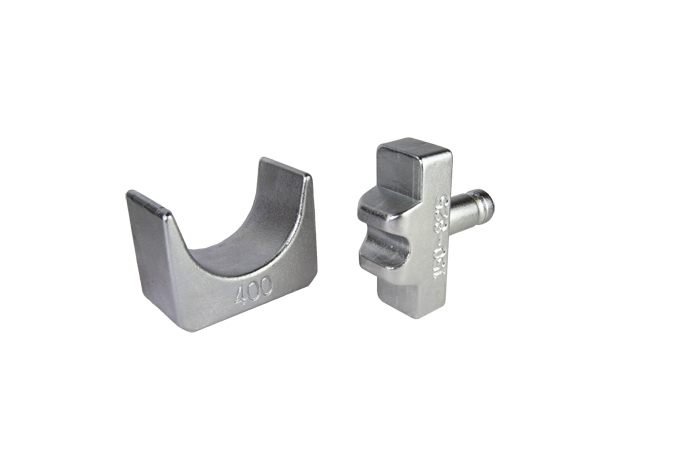

    CPO-400B17710.432575040016-25,35,50-70,95,
    120,150,185-240
    ,300,400

    Hexagon
    proimages/A002/22.jpg
