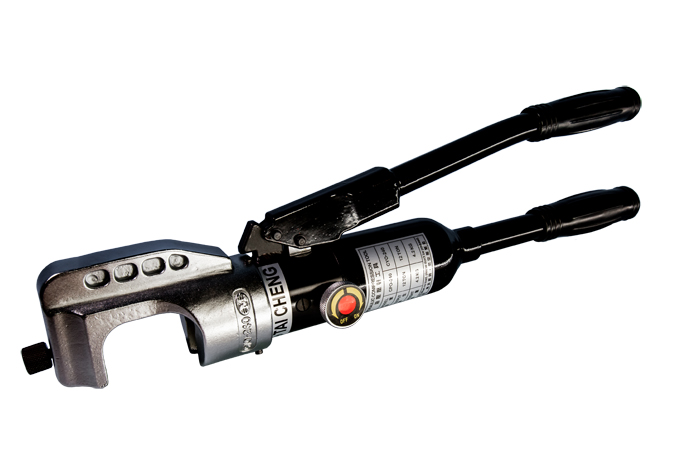

CYO-240 Hydraulic Compression ToolCYO-240 Hydraulic Compression Tool Components

Model number: CYO-240

Output:10(Ton)

Body weight:4.3(kg)

Net weight:6.2(kg)

Compressed die sizes(mm²):16,22,35,50,70,95,120,150,185,240

Remark:Hexagon

Quantity

High pressure direct type hydraulic crimping compressed tool, manually operation entering oil by high and low two-stage output, the maximum output pressure is 700kgf/cm2(10000psi).

Easy to operate and carry, suitable for high-altitude operations.

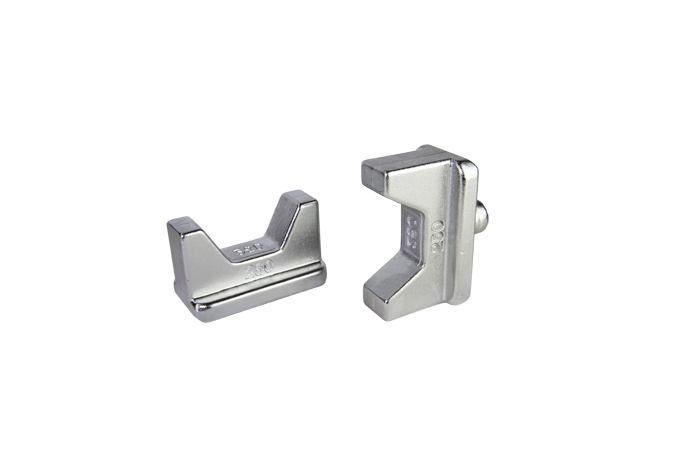

Accessory dies can be replaced, point compression type, compression maximum size up to 240mm2.

C-shaped and 180o rotatable head part, can make use of variety of angles.

With the overload-protective device.

Able to customize dies in any sizes.
